Challenge: Progress Report #3
HypothesisI would like
to present evidence that the Chaocipher algorithm requires a 13- or 26-letter blocking. This supports Greg Mellen's
hypothesis that such a blocking was used.
for a 13- or 26-letter
blocking factorIn Greg Mellen's seminal article  he
hypothesized that the Chaocipher device works on blocks of 13 letters
at a time. He based this on the fact that he believed a pt/ct
identity never occurred within a 13-letter block of text. For
example, if the Chaocipher text in Exhibit 1 is
divided into blocks of 13 letters, starting with the first letter of
the exhibit, we would have the following:
A L L G O O D Q Q U I C K
C L Y T Z P N Z K L D D Q
B R O W N F O X E S J U M
G F B O O T Y S N E P U A
P O V E R L A Z Y D O G T
G K I U N K N C R I N R C
O S A V E T H E I R P A RThe
above division assumes a block begins with the first letter of the text
("offset 0"). If we assume the blocking begins with an offset
of 1 we would get the follows:
V K J N H T O A F Q P D P
etc. . . .
L L G O O D Q Q U I C K B
L Y T Z P N Z K L D D Q G
R O W N F O X E S J U M P
F B O O T Y S N E P U A G
O V E R L A Z Y D O G T O
K I U N K N C R I N R C V
S A V E T H E I R P A R TContinuing
in this fashion, there are in total 13 ways to divide the text into
blocks of 13 letters.
K J N H T O A F Q P D P N
Similarly, we can divide the
text into blocks of 10, 11, 12, 14, 15, etc. letters.
wrote a Perl script that counted the number of pt/ct identities in each
block, for every block size and offset. The raw results can
be seen here. For example, blocking size 13 shows
|Block size||Offset||Number Pt/Ct Identities||First identity offset|
The results shows that 13-letter blocking with an
offset of 0 resulted in 8 pt/ct identities, while an offset of 1 had 11
pt/ct identities. The last column, for reference, denotes the
offset within the text where the first pt/ct pair of the first identity
What happens when we graph the block size/offset results?At
this point I graphed each block size N, mapping all N offset results.

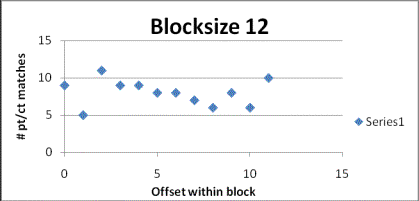

For example, mapping block size 12 gives the following graph:
x-axis denotes the offset within a block size of 12 (i.e., 0, 1, 2, ...
11), while the y-axis shows the number of pt/ct identities for that
offset. For this graph we see multiple nodes with possible
skewing to the right.
I produced graphs for block sizes 12-14, 22-28, 39, and 52. You can see all the graphs here. The results are amazing: block sizes 13 and 26 are clearly normally distributed while the others are clearly not.
Block sizes 39 and 52 (i.e., multiples of 13/26) do not seem to
show normal distribution. Block sizes 13 and 26 are obviously
causal while other block sizes introduce random results.
My explanation is:
- The underlying algorithm has uses a blocking of 13 letters (or possibly a 26-letter block size)
- An offset of 0 results in the smallest number of pt/ct identities.
- Previous progress reports have shown that Chaocipher tends to produce a small number of pt/ct identities.
the offset grows adjacent blocks begin to overlap and straddle more and
more. This results in a dulling of the small expected number of
pt/ct identities (i.e., an increase in non-causal identities).
- The underlying algorithm indeed incorporates a 13-letter blocking step.
- It could be argued that there blocksize is 26 and that the block size 13 graph is due to its being a factor of 26.
- Future hypotheses should consider this important finding.
Mellen, Greg. 1979. J. F. Byrne and the Chaocipher,
Work in Progress. Cryptologia, 3(3): 136-154.
